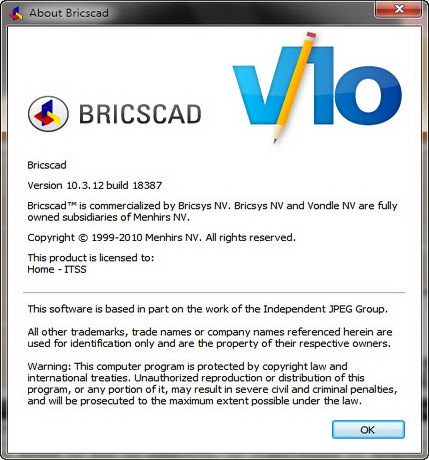

BricsCad Pro 10.3.12.18387

BricsCad - отличный выбор для архитекторов, инженеров, конструкторов и для всех, кто создаёт или использует чертежи САПР. Программа обеспечивает непревзойдённую совместимость с Autodesk AutoCad, а также делает возможным применение сотен программ разработанных третьими фирмами. Любой человек, хорошо знакомый с Autocad, может сразу начать работу с BricsCad, без какого-либо обучения. Удобные возможности визуальной настройки пользовательского интерфейса, а также поддержка файлов Autocad пользовательских меню, панелей инструментов, сценариев, снимков.

Совместимость DWG:

  • Нативная поддержка формата DWG 2007;
  • Меню и панели инструментов CUI;
  • Расширенная поддержка растровых изображений;
  • Менеджер данных пользователей;
  • Новое ядро LISP;
  • Полная поддержка SDS;
  • Новый COM API;
  • Поддержка Object ARX

Производительность:

  • Мощный Проводник;
  • Присоединяемая панель свойств;
  • Объединенный диспетчер настроек;
  • Настройка диалога и редактора;
  • Полная поддержка ACIS твердотельного моделирования в 3D;
  • Visual Basic for Applications (VBA).

BricsCad is the smart choice for architects, engineers,designers-virtually any professional who creates or uses CAD drawings.BricsCad provides unrivaled compatibility with Autodesk AutoCAD and is fully programmable with hundreds of third-party solutions. AutoCAD command line Most CAD professionals spend years mastering AutoCAD commands until they're second nature.Since these commands help create the majority of CAD work,BricsCad transparently maps them to BricsCad equivalent commands.

DWG Compatibility

  • Native DWG 2007 file format
  • Support for AutoCAD versions 2.5 to 2008
  • CUI menus and toolbars
  • Extended raster image support
  • User data file manager
  • New LISP engine
  • Full SDS support
  • New highly compatible COM API
  • Support for Object ARX

Productivity

  • Powerful Drawing Explorer
  • Dockable Properties Bar
  • Consolidated Settings Manager
  • Customize dialog and editor
  • Full ACIS (3D solids) modeling
  • Visual Basic for Applications (VBA)

Изменения в версии 10.3.12

Improved

  • TaskDD1363 - AUTOSAVE: was made faster by avoiding creation of thumbnail preview bitmaps.
  • Two new print color table files, displaycolors.ctb and displaycolors-darkbg.ctb, were added to allow printing of colors as they display onscreen, both for a white background and for a dark background. In V10.3 the color mapping for printing was revised and corrected for maximum compatibility, historically the color mapping was set too dark.
  • As a result, every CTB, including default.ctb, yields lighter prints than before. Default.ctb yields colors that are slightly lighter than onscreen, this is intentional. To obtain printed colors that closely match the onscreen colors, the new color tables can be used.

Fixed

  • regressions introduced in 10.3.11:
  • PRINT
  • When the default paper orientation of a system printer (or a pc3) was set to Landscape, the print was scaled undesirably.
  • When printing a paper space layout using Extents print area and Fit scaling, the print was shifted.
  • EXPORT: to PDF, WMF and DWF was mirrored.
  • OLE
  • Size of pasted OLE objects was incorrect, the Y-coordinate was not taken into account.
  • Some OLE objects failed to print.
  • OLE editor should not be triggered immediately after inserting the OLE object.
  • SNAP: a temporary snap track line was left behind on the display after selecting a point.
  • SR22280, SR23741 - PROPERTIES BAR: should not pop up when double clicking editable entities.
  • SR23730 - FONT combo box: font name look up was case sensitive, it should be case insensitive.
  • PRINT: drawing was incorrectly clipped when printing with Portrait setting to a Landscape paper sheet.
  • UNION, INTERSECT, SUBTRACT: if an error occurred, the command was interrupted and tool entities were deleted.
  • INTERSECT: failed to handle more than 2 entities.
  • SR22501 - EXPLODE: mtext of an exploded MLeader was placed on a wrong layer.
  • SR23409 - DIMANGULAR, DIMARC: failed on dashed 2d polylines.
  • SR23756 - PAN: a crash occurred _after_ grip editing a viewport in paper space, when panning while the grips were still visible.
  • SR23759, 23830 - DISPLAY: when zooming to the extents of a drawing, error messages appeared: "An error occurred while rendering entity 2B7F7".
  • SR23830 PAN: display artefacts occurred when panning in Model Space, when using multiple viewports with different rendering types.

Application Development

  • SR20380 - CMDACTIVE sysvar now returns 0 from STARTUP. Drawing is opened after the dialog is closed.
  • SR23571 - TEXT command (from LISP): display characters immediately after typing.
  • SR23576 - LICKEY: added sysvar LICKEY that returns the license key in use.
  • SR23642 - LISP: strings returned from COM methods "By Reference" were NIL. Fixed problems with (vla-numcustominfo), (vla-GetCustomByKey), (vla-GetCustomByIndex). Small performance improvement for (vla-get/put-xxx) and (vla-xxx) functions.
  • SR23709 - LISP: (vl-catch-all-apply) was broken.
  • SR23746 - POLYLINE: command returned RTNORM instead of RTCAN when user pressed Escape. This influences programs that use sds_command or lisp (command) to draw a polyline.
  • SR23788 - LISP: crash at startup, if a drawing was loaded (by command line or by doubleclick) which contains persistent Lisp reactors.
  • SR23854 - LISP: there was a problem with (chr number) if number > 255. Now all numbers > 255 are mapped to range 0...255, respecting the codepage. Also fixed: (chr 0) did not yield "", but "\000".



Скачать программу BricsCad Pro 10.3.12.18387 (90,59 МБ):
